PNY GeForce RTX™ 5060Ti 16GB Overclocked Dual Fan

Previous productPNY GeForce RTX™ 5060 8GB ...

Next productPNY GeForce RTX™ 5060Ti 8GB...

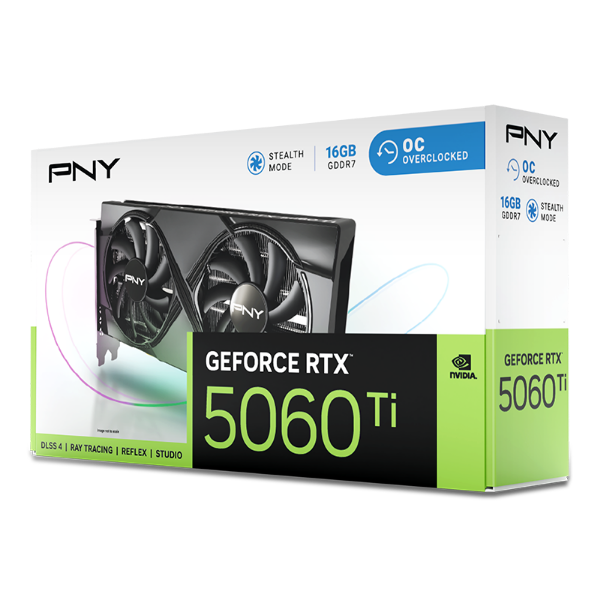

תמונה של PNY GeForce RTX™ 5060Ti 16GB Overclocked Dual Fan

*התמונה להמחשה בלבד

תמונה של PNY GeForce RTX™ 5060Ti 16GB Overclocked Dual Fan

תמונה של PNY GeForce RTX™ 5060Ti 16GB Overclocked Dual Fan

תמונה של PNY GeForce RTX™ 5060Ti 16GB Overclocked Dual Fan

טרם דורג המוצר

PNY GeForce RTX™ 5060Ti 16GB Overclocked Dual Fan

יצרן: NVIDIA

מק"ט: VCG5060T16DFXPB1

PNY Part Number

VCG5060T16DFXPB1-O

UPC Code

751492795072

Architecture

Blackwell

CUDA^® Cores

TBD

Clock Speed

2407 MHz

Boost Speed

2692 MHz

Memory Speed (Gbps)

28

Memory Size

16 GB GDDR7

Memory Interface

128-bit

Memory Bandwidth (GB/sec)

448

TDP

180W

NVLink

Not Supported

Outputs

DisplayPort 2.1b (x3), HDMI^® 2.1b

Multi-Screen

4

Resolution

4K at 480Hz or 8K at 165Hz with DSC³

Power Input

1x8-pin

Bus Type

PCI-Express 5.0 x8

Card Dimensions

9.65" x 4.72" x 1.57"; 2 Slot

Box Dimensions

12.68" x 7.05" x 2.76" / 322x179x70mm

³Up to 4K 12-bit HDR at 480Hz with DP 2.1b + DSC or HDMI^® 2.1b +DSC. Up to 8K 12-bit HDR at 165Hz with DP 2.1b + DSC. Up to 8K 12-bit HDR at 120Hz with HDMI^® 2.1b + DSC. With dual DP 2.1b + DSC, up to 8K HDR at 100Hz

מידע נוסף

PNY Part Number

VCG5060T16DFXPB1-O

UPC Code

751492795072

Architecture

Blackwell

CUDA^® Cores

TBD

Clock Speed

2407 MHz

Boost Speed

2692 MHz

Memory Speed (Gbps)

28

Memory Size

16 GB GDDR7

Memory Interface

128-bit

Memory Bandwidth (GB/sec)

448

TDP

180W

NVLink

Not Supported

Outputs

DisplayPort 2.1b (x3), HDMI^® 2.1b

Multi-Screen

4

Resolution

4K at 480Hz or 8K at 165Hz with DSC³

Power Input

1x8-pin

Bus Type

PCI-Express 5.0 x8

Card Dimensions

9.65" x 4.72" x 1.57"; 2 Slot

Box Dimensions

12.68" x 7.05" x 2.76" / 322x179x70mm

³Up to 4K 12-bit HDR at 480Hz with DP 2.1b + DSC or HDMI^® 2.1b +DSC. Up to 8K 12-bit HDR at 165Hz with DP 2.1b + DSC. Up to 8K 12-bit HDR at 120Hz with HDMI^® 2.1b + DSC. With dual DP 2.1b + DSC, up to 8K HDR at 100Hz
